This 700W Frame Moving Head light, with its powerful output and extensive versatility, offers unprecedented light and shadow control for professional performances, theaters, television studios, and large-scale events.
Technical parameters:
Light source specification: 600W LED module
Input voltage: AC100V-240V /50Hz-60Hz
Rated power:720W
Channel mode: 39CH
Light source life: 20000 hours
Beam angle: electron linear zoom 5-50 degrees
Color rendering index: adjustable display mode, standard mode Ra > 70, high display mode > 90
Color mixing system: Independent CMY color mixing system
Color temperature adjustment: CTO color temperature correction (7200-3200K)
Light source color temperature: 7400K
Color plate: 1 color plate has 6 colors, can achieve two-way rainbow, half color effect
Fixed gobo : 4 fixed gobos, which can change speed and shake
Rotating gobo: 7 optional gobos (pluggable), variable speed jitter and two-way rotation
Effect tray: Super dazzling simulation of dynamic flames, gurgling water and other dynamic effects
Prism: 3 facet prisms, can be independently bidirectional rotation
Pan/Tilt: 540°/270°, automatic return and 16Bit precision fine-tuning
Cutting system: 4 independent cutting pieces, each piece can be individually closed light, can be rotated 90°
Dimming: 0-100% linear adjustment
Strobe: 0-25Hz fast electronic stroboscopic
Frost: 1 independent atomizer,0-100% linear atomization, light spot natural soft
Control protocol: Standard DMX512 protocol
Signal interface: 3-core XLR signal input/output, optional 5-core
Display mode: LCD touch screen, can reverse 180° display
Energy saving sleep: Automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Cooling system: efficient cooling system, intelligent speed fan, built-in temperature sensor, automatic cooling system
Product appearance: flame retardant, high temperature resistance, folding integrated hook.
Pictures:

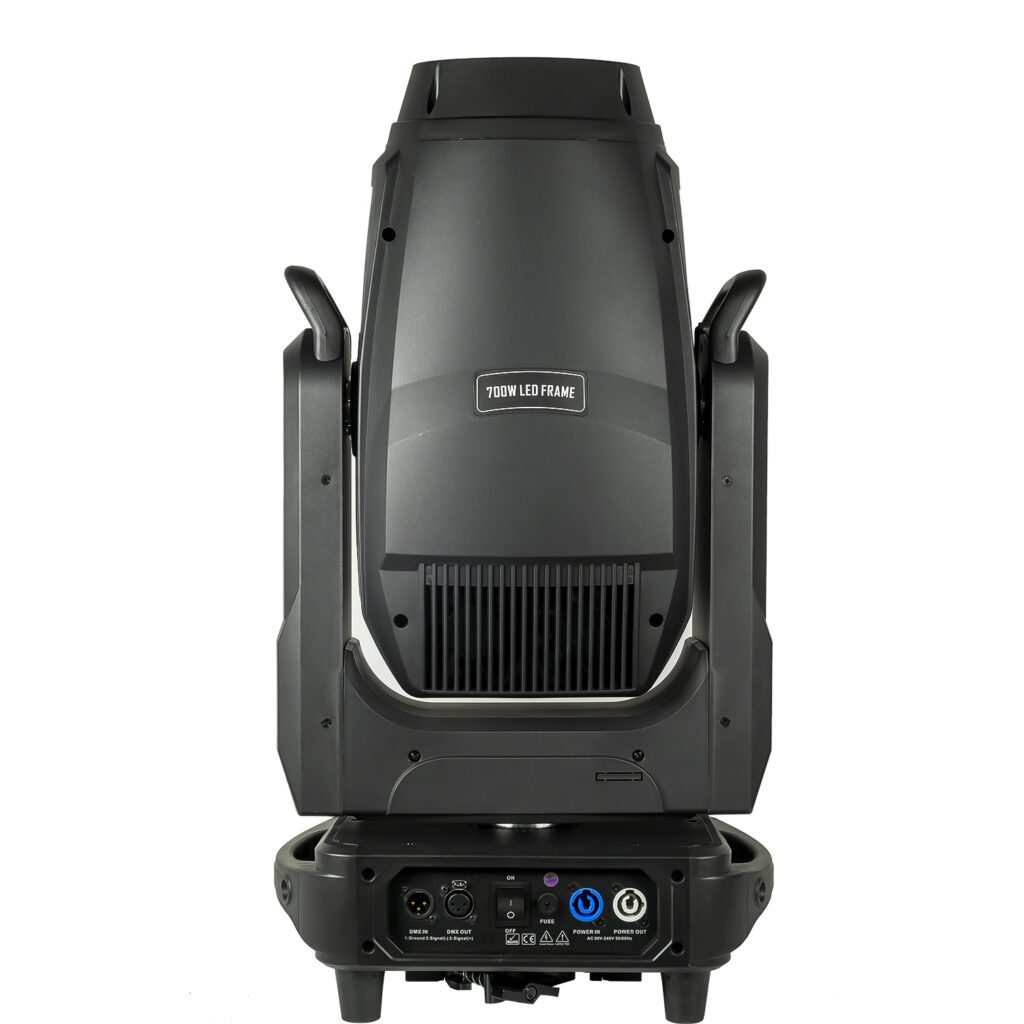

This 700w Frame is a new product from Liro.
600W LED module light source provides a high-brightness beam.
Electronic linear zoom of 5.5-50° allows switching from an extremely narrow spotlight to a wide wallwash effect without moving the fixture, providing ultimate flexibility for stage composition.
CMY + CTO blends create an infinite variety of saturated and smooth colors, perfectly matching any shot or scene.
Color wheel + 2 gobo wheels create infinitely complex and unique graphic projections, greatly enriching the visual experience.
A four-blade shutter, each with separate movement and full blackout, and a 90° rotation dynamic effect wheel enable precise cutting of any complex shape.
3 facet prism enhances the beam’s three-dimensionality and visual impact.
It can controlled via DMX512,RDM control, which can make it more convenient for lighting engineers to operate and show better stage lighting performances.
