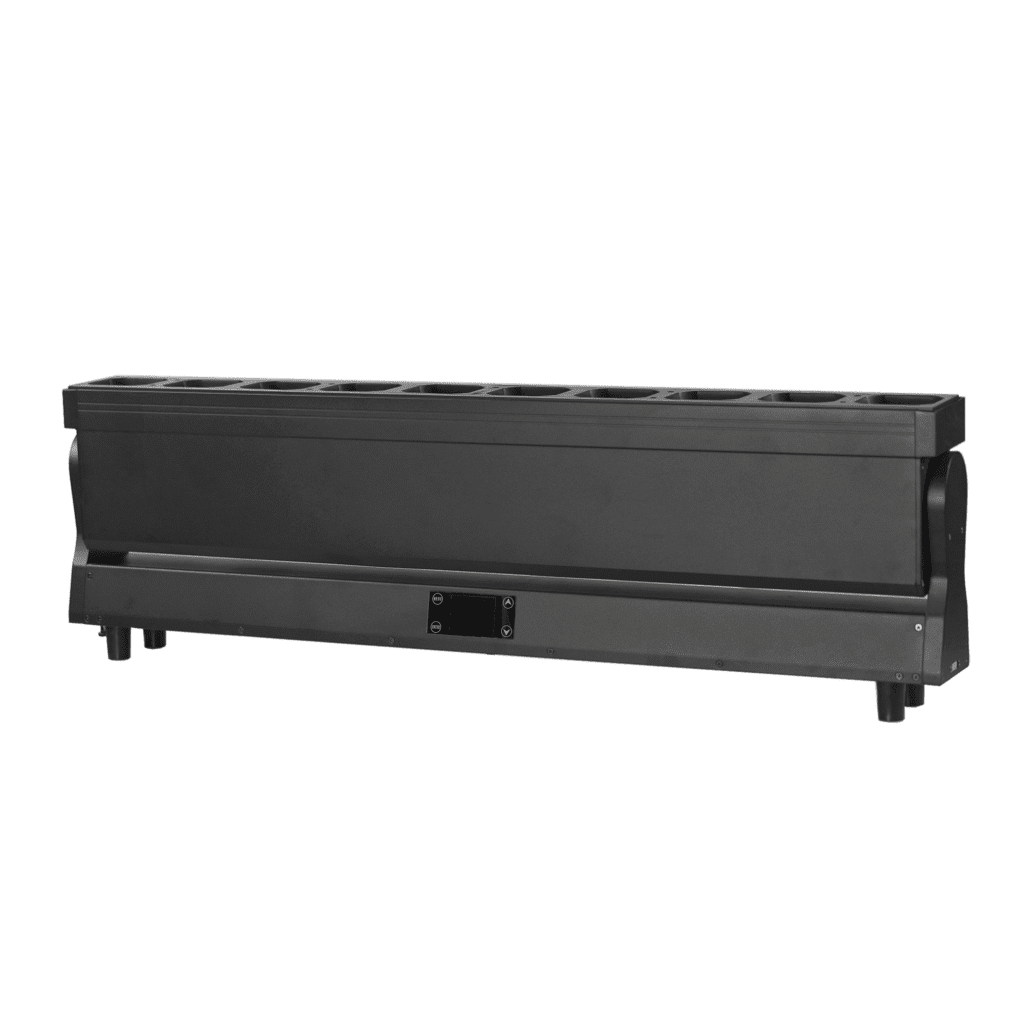

LIRO-LITE Dotline 10x60W RGBW LED Pixel Zoom Wash Moving Head Beam Bar Light

The Super Dotline 10×60W RGBW LED Pixel Zoom Wash Moving Head Beam Bar Light is a professional stage lighting device that combines high brightness, multi-functions, and intelligence. Equipped with 10 60W four-color RGBW LED main light sources, it is equipped with 96×3W cool white (CW) and 96×3W warm white (WW) light sources, as well as 96×0.5W RGB three-color LED auxiliary light sources. It achieves rich lighting effects such as switching between cool and warm tones and full-color dynamic strobe. It shares the same channel with ACME equipment and can be seamlessly spliced into a large lighting effect matrix, making it an all-round solution for high-end stage lighting systems.

Technical parameters:

Input power: 180-240V~ 50/60Hz
Power: 800 W
Light source
Beam end:
10 x 60W RGBW LED
Strobe end:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature: 6,300K
Luminous flux: 22,400 lm
LED life expectancy: 20,000 hours
Beam angle: 2.8°-31° (beam end)
Spot angle: 5°-46° (beam end)
Control panel: LCD display
Control protocol: DMX512, RDM
DMX channel mode: 7 types
Channel mode: 17/27/99/108/168/8+100/8+160/170 channels
Software upgrade: Update software via DMX connection
Tilt operating angle: 202°
Power Outlet: Power Connector In/Out
Signal input/output: three-pin or five-pin XLR socket

Pictures:

Can be spliced

Size:

The main beam unit features 10 60W RGBW four-color LEDs, with stepless zoom ranging from an ultra-narrow 2.8°-31° beam to a wide spot 5°-46°. It can project a sharp, long-range beam or a soft, even wall-washing effect. The secondary strobe unit integrates 96 3W cool white LEDs, 96 3W warm white LEDs, and 96 0.5W RGB LEDs, instantly igniting the atmosphere with high-speed strobing and color gradients. The combination of 22,400 lumens of ultra-high brightness and 6,300K natural white light ensures outstanding clarity even in large venues, while a long lifespan of 20,000 hours significantly reduces operating costs.

The Super Dotline 10×60W supports DMX512/RDM protocols and offers seven channel modes (17/27/99/108/168/8+100/8+160/170 channels), accommodating diverse needs from basic dimming to complex programming. Its LCD control panel and DMX software upgrade feature make operation intuitive and efficient. Its compatibility with ACME devices on the same channel is particularly noteworthy, allowing it to seamlessly integrate into existing lighting systems.

In addition, independent control of individual LEDs gives designers ultimate control over lighting effects. Its mechanical design, featuring 202° Y-axis rotation and modular splicing capabilities, allows for flexible coverage of a single stage or the ability to create stunning, large-scale light arrays by splicing multiple units.

From concerts, music festivals, theater productions, to live television broadcasts, this fixture offers powerful performance, creative flexibility, and stable operation, making it a key tool for creating immersive light experiences.
