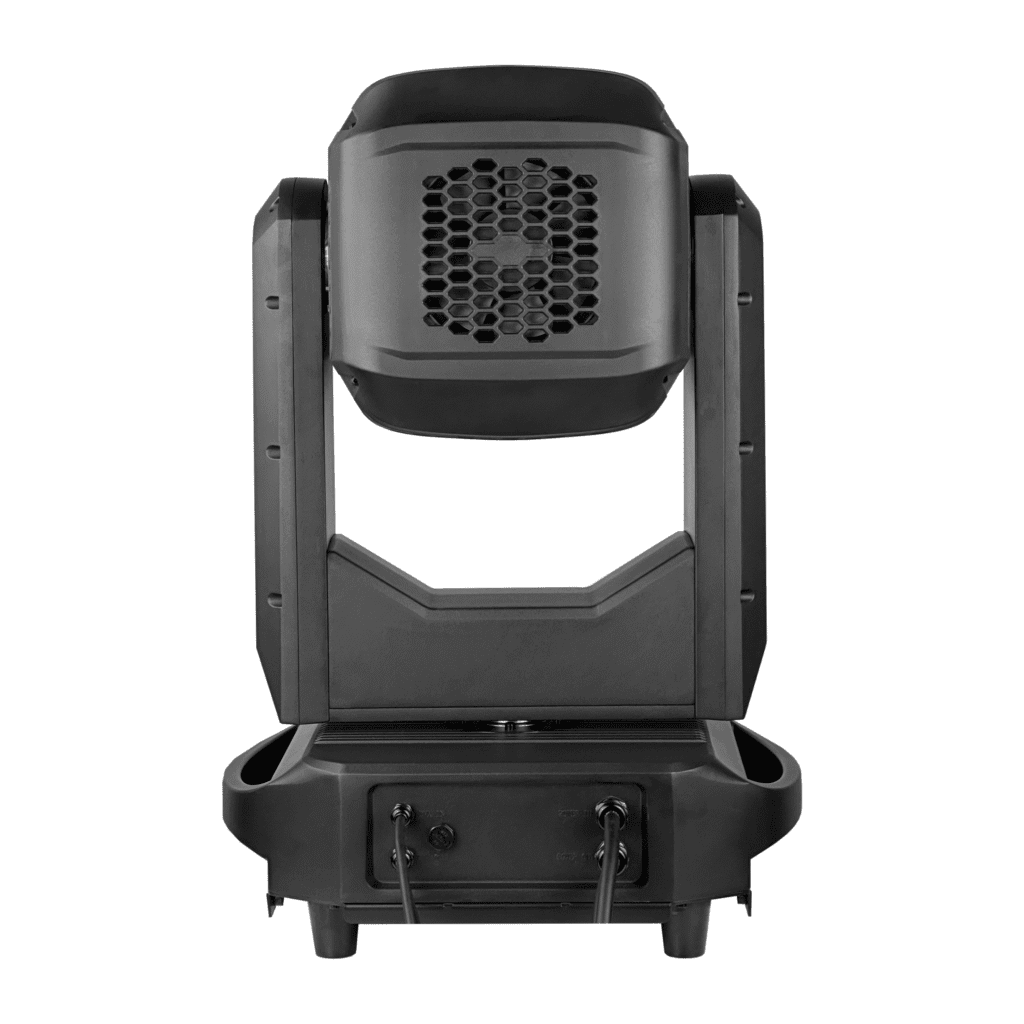

LIRO-LITE IP66 BSW 380W/420W Wash Moving Head Light

This series of stage BSW moving head lights includes two models: IP BSW380 3IN1 and IP BSW420 3IN1, which are 3IN1 (Beam, Spot, Wash) fixtures designed for professional stage lighting applications, including outdoor events. As IP-rated waterproof BSW moving lights, they achieve an IP66 protection rating, making them ideal waterproof lights for performances in outdoor or harsh environments.

TECHNICAL PARAMETERS:
Light source: USHIO 421 W/371W
Output lens diameter 138 mm
Zoom angle: 1.6 ° -27 °
Color temperature: 7900K
Pan: 540 °
Tilt: 270 °
Automatic correction of Pan/Tilt position out of step
Pan/Tilt: 16 bit precision scanning
Other effects:
Multiple speed strobe effect
0-100% smooth dimming
Electric focusing system
A homogenizer mirror
Control and Program:
4 touch buttons
Control protocol: DMX512, RDM
Channel mode: 27 channels
Electrical and Interface:
Input voltage range: AC 100-240V 50/60Hz
Power: 615W
Power socket: Waterproof power cord input/output
Signal input/output: 3-core waterproof signal cable input/output
Lamp specifications:
Lamp size: 705 * 375 * 300mm Net weight: 30kg
Carton size: 810X430x 550.5mm
Work environment:
Maximum ambient temperature: 40 ° C
Minimum operating temperature: -10 ° C
Maximum surface temperature: 76 ° C
Protection level: IP66

Equipped with an Osram 371W/421W Lamp light source, this BSW fixture supports a CMY+CTO color adjustment system, with a zoom range covering 4 to 50 degrees. It is equipped with 2 gobo wheels, It is equipped with 6-line face prism and 8-line face prism, and comes with a Tru1 Connector, enabling rich pattern projection and beam shape changes for diverse stage light designs.

Color:

GOBO:

Multifunctional Integration (BSW 3IN1): These stage BSW moving head lights integrate the sharp impact of beams, creative shaping of spots, and atmospheric rendering of washes. A single BSW380/420 fixture can meet multiple stage lighting demands, reducing equipment costs and saving stage space.

IP66 Protection for Outdoor Use: With an IP66 protection rating, these waterproof BSW moving lights offer excellent dustproof and waterproof performance, making them reliable waterproof lights for outdoor events and complex environments. Professional connectors (e.g., Tru1) ensure stable, compatible equipment connections.
