LIRO-LITE IP66 LED 1000w CMY+CTO Beam Spot Wash Framing BSWF 4in1 Moving Head Light

This waterproof 1000W BSWF 4-in-1 multi-function spot light is a powerful lighting tool for professional stage and outdoor performances. It integrates powerful beam, sopt, wash, and framing functions. Its independent CMY color mixing system allows for easy creation of a rich and varied color effects to meet the visual needs of any scene.

Technical parameters:

• Input Voltage: AC 100240V, 50/60Hz
• Rated Power: 1000W
• LED Lifespan: 20,000 hours
• Color Temperature: 6500K
• Aperture: 138mm
• Color Rendering Index (CRI): Standard mode Ra > 70, High CRI mode Ra > 90
• Signal Interface: 3pin XLR / Optional 5pin XLR
• Control Modes: DMX512, RDM, Auto, MasterSlave
• Channel Modes: 34CH39CH56CH international standard DMX512 channels
• Display System: 2.8inch touch LCD screen, Chinese/English display, 180° rotation
• Fixed Colors: 6 colors + white
• Color Mixing System: Independent CMY color mixing system
• Color Temperature Adjustment: CTO 2500~6500K linear adjustment
• Prism Wheel: Rotating 4facet prism
• Gobos: 7 replaceable gobos + white circle
• Shutter System: 4 independent shutters, each can close individually and rotate 90°
• Frost System: 0~100% linear frost
• Iris System: 6%~100% smooth adjustment
• Zoom System: 4.8°~50° linear zoom
• Dimming System: 0100% linear dimming
• Strobe System: Frequency up to 25Hz, with optional random strobe and pulse strobe
• Horizontal Movement: 540° (16bit precision scanning)
• Vertical Movement: 270° (16bit precision scanning)
• Protection Rating: IP66
• Operating Environment: 045℃
• Product Dimensions: 41cm * 27.7cm * 66cm
• Net Weight: 28kg
• Packaging Dimensions: 50.5cm * 36.5cm * 79.5cm
• Gross Weight: 32kg

Pictures:

Details:

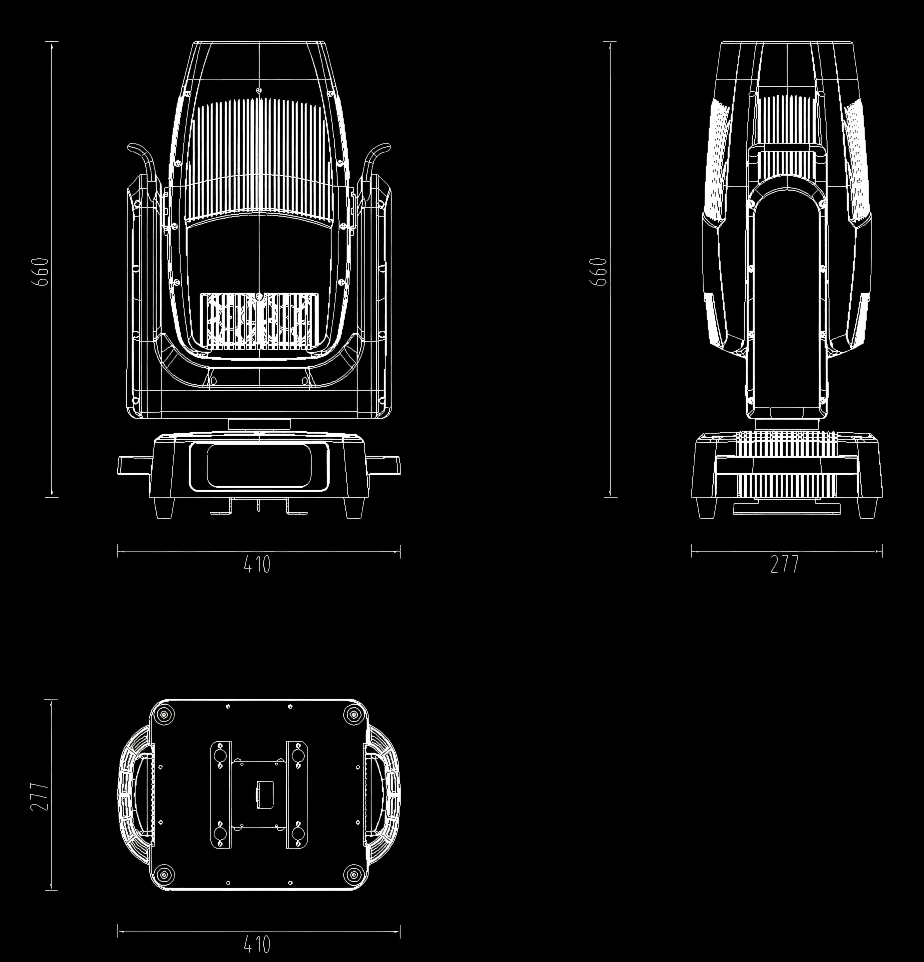

Size:

Description:

This high- performance stage light—a versatile Moving Head light that also serves as a waterproof stage light and Outdoor stage light—delivers exceptional performance. It features AC 100-240V wide voltage input (compatible with 50/60Hz), 1000W rated power, and a long-life LED module supporting 20,000 hours of continuous operation, ensuring reliability for frequent professional use.

As a premium Moving Head light, it boasts a 138mm large aperture and independent CMY color mixing system, offering six fixed colors + white, 2500K-6500K linear color temperature adjustment, and CRI >70 (standard mode)/>90 (high rendering mode) for accurate color reproduction, critical for indoor and outdoor events requiring true color display. It also integratesRGBW Moving Head strobe light characteristics to boost versatility in dynamic lighting design.

The stage light supports DMX512/RDM/Auto/MasterSlave multi-mode control, 34/39/56 international standard channels, and a 2.8-inch 180° rotatable bilingual touchscreen for intuitive operation, suitable for standalone use as a frame Light or part of complex lighting arrays.

Optically, it has four rotating prisms, seven interchangeable gobos, a white ring, 90° rotatable independent shutters, 0-100% linear fog, 6%-100% smooth aperture, and 4.8°-50° linear zoom for dynamic, precise projection. Additionally, it offers 0-100% linear dimming, up to 25Hz strobe (random/pulse modes), and 16-bit 540° horizontal × 270° vertical precision scanning.

With an IP66 rating (surpassing standard IP65 stage light), it works seamlessly as a BSWF Light and operates stably at 0°C-45°C, making it an ideal choice for professional stage and outdoor performances adaptable to diverse environments.

Video link:
