LIRO-LITE LED BSW 330W CMY+CTO Beam Spot Wash 3-in-1 Wash Zoom Moving Head Light

The LIRO-LITE LED BSW 330W CMY+CTO Beam Spot Wash 3-in-1 Wash Zoom Moving Head Light is our newly launched high-efficiency integrated moving head light. Its core advantage lies in its integration of three functions: high-penetration narrow-angle beam (Beam), precise focusing imaging (Spot), and wide-angle uniform color wash (Wash). Combined with a professional-grade CMY linear stepless color mixing and a 2700K-6500K CTO linear color temperature adjustment system, it achieves pure and natural color transitions and precise color temperature coordination. Furthermore, this light is equipped with a 330W high-efficiency LED module, making it widely suitable for various scenarios such as large concerts, theater performances, TV studios, and exhibitions.

Technical parameters:

• Input voltage: AC110v – 240v / 50-60HZ
• Light source : 330W LED module
• Light source life: 50000 hours
• Total power: 350w
• Channel mode: 23CH
• Pan: 540 degrees (16-bit precision scan) electronic error correction
• Tilt: 270 degrees (16-bit precision scan) electronic error correction
• Dimming : 0-100% linear adjustment
• Frost system: 1 independent frost effect, soft and natural light spot
• Zoom angle: 2.8-32 degrees
• Strobe: 0-30 times/second. The speed-adjustable strobe effect is adjustable.
• Color: 14 colors + white light+CMY+CTO
• Fixed gobo: 12 fixed gobo + white light
• Rotating gobo: 7 glass gobo+ white light, each glass gobo can be independently reversed
• Prism : standard 3 prisms, can be independently reversed
• Display: 1.8-inch LCD display, Chinese and English bilingual operating system, can be reversed 180° display
• Optical device: combined optical lens
• Control mode :DMX512/Master-Slave/Auto Run/RDM/Manual
• Cooling method: Axial flow fan is used to enhance cooling
• Appearance material: high temperature resistant plastic
• Working environment: -20 degrees – 40 degrees
• Signal line: signal line three-core XLR input, signal line three-core XLR output
• Power line: aviation plug input, output
• Protection level: IP20

Pictures:

Details:

Description:

The LIRO-LITE LED BSW 330W CMY+CTO Beam Spot Wash 3-in-1 Wash Zoom Moving Head Light features a 330W LED module with a lifespan of up to 50,000 hours, a total power of 350W, and an input voltage of AC110V – 240V / 50-60HZ, making it suitable for various power supply environments.

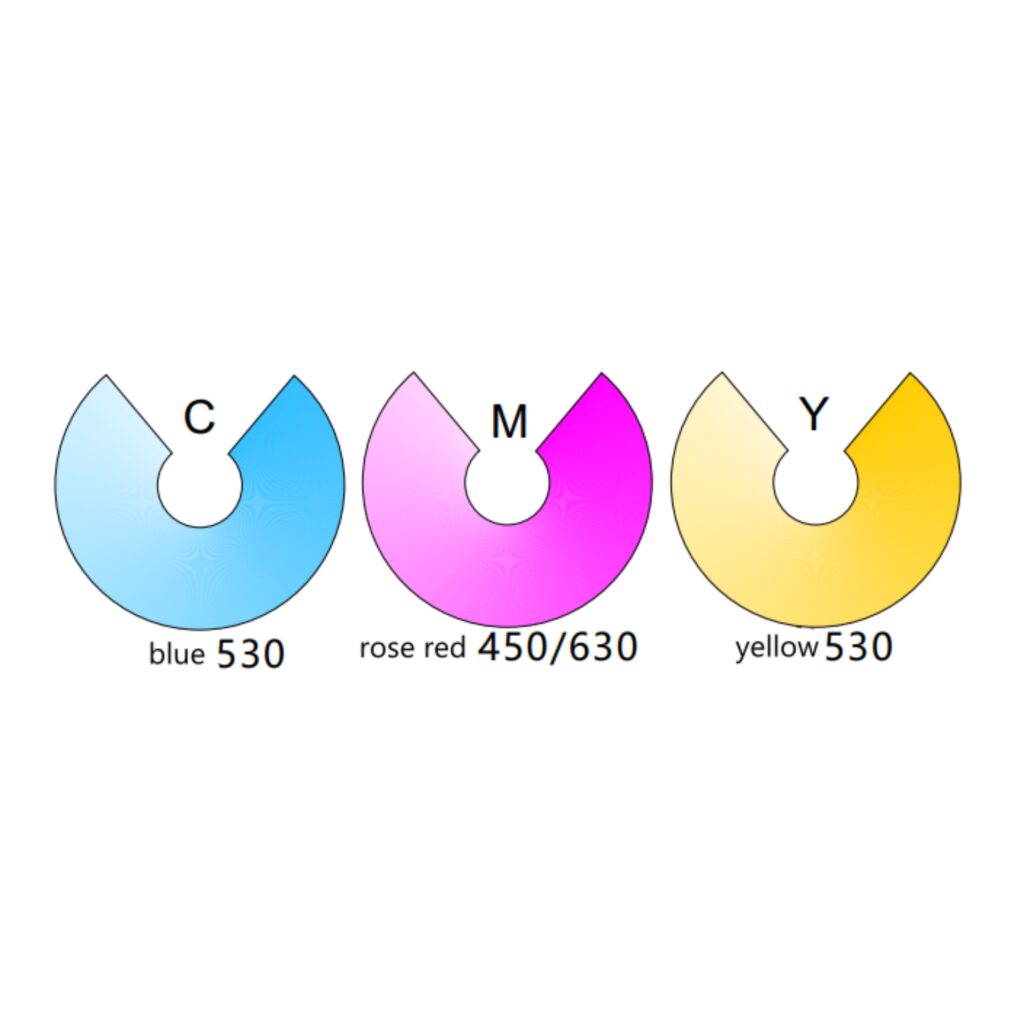

This light is equipped with a professional-grade color control system covering 14 colors plus white light. Combined with CMY linear stepless color mixing and CTO color temperature adjustment, it achieves pure and natural color transitions and precise color temperature coordination.

It also offers rich pattern effects, with 12 built-in fixed patterns plus white light and 7 independently reversible rotating glass patterns plus white light. Paired with a standard independently reversible triangular prism, it can meet diverse creative needs in stage design, such as aerial beam shows, stage focal lighting, and large-area color application.

In terms of control and adjustment, it supports 23 channels, a 2.8-32 degree zoom angle, 0-100% linear dimming, adjustable strobe speed of 0-30 times/second, and one independent fogging effect to create a soft and natural light spot. The horizontal scanning angle reaches 540 degrees, and the vertical scanning angle reaches 270 degrees, both supporting 16-bit precision scanning and electronic error correction, ensuring accurate positioning and stable operation.

Furthermore, the light uses a combined optical lens, offering rich control modes compatible with DMX512, master-slave, automatic operation, RDM, and manual control. It features a 1.8-inch bilingual (Chinese and English) LCD display screen that supports 180° tilting for convenient operation.

In terms of structure and protection, it adopts an axial fan to enhance heat dissipation, the shell is made of high-temperature resistant plastic material, the working environment temperature range is -20℃ to 40℃, the signal line is a three-core XLR input and output, the power cord is an aviation plug input and output, and the protection level reaches IP20. It is a new generation of core lighting equipment in stage lighting engineering that combines functionality, professionalism and high efficiency.
