Specificatie:
Wide voltage: AC90V-235V 50-60Hz
Power : 650W
Light source : 371W/421W
Color temperature; 8000K
Color : 11+white light

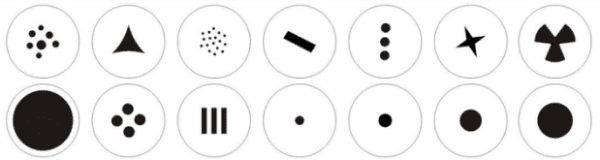

Gobo : 13 fixed Gobo+ 1 white light
Focus : Electronic focus
Strobe: dual motor independent strobe effect, 0.5-20 times/second, adjustable speed
Rotating Gobo : 9+1
Motor: XY axis three-phase motor, so that the speed of the lamp is high and the positioning angle is accurate!
Dimming curve: 0%-100% linear dimming, smooth and flicker-free
Beam angle: 2-40°
DMX Channels: 17 /21CH
Lens diameter: 135mm
Waterproof grade: IP66
Control mode 1: DMX 512, self-propelled, master-slave self-propelled, RDM function, can use large controller to control remote address code.
Prism : 8 prisms (prisms can be configured according to customer requirements).
Display: LCD display, adapt to different installation positions, can rotate 180°
Pan/Tilt: adopts high-precision three-phase motor, accurate positioning, smooth operation, automatic positioning correction
Pan: 540° rotation, resolution 8/16Bit, with fine adjustment
Tilt: 270° rotation, resolution 8/16Bit, with fine adjustment.
Cooling system: cast aluminum, whole lamp heat dissipation.
Installation method: upright/inverted
Lamp size: 43x26x63cm
Carton packaging size: 41x49x77cm
Net weight: 26KG
Gross weight 32KG
Masterpiece: high-end appearance, huge energy, thick light column The waterproof beam lamp has reached high standards in terms of optics, structure, appearance, etc., using the most advanced technology, high-brightness light source, optical technology and rigorous industrial design to ensure the perfect presentation of lighting design.
Parameter:
Product Name | Waterproof BSW Moving Head Light |
Stroom | Original Bulb 421W/ 371W |
Input Voltage(V) | AC 100-240V, 50/60Hz |
IP Rating | IP66 |
color wheel | 11 colors + white light |
Fixed gobo wheel | 13 fixed Gobo+ 1 white light |
Rotation gobo wheel | 9 Rotation Gobo+ 1 white light |
Prism | 8 prisms (prisms can be configured according to customer requirements). |
Control Mode | Voice control, built-in program, master slave, DMX512 signal control |
Application | Performances, Stage, Cultural Tourism Project |
Warranty | 2 Year |
OEM&ODM Service | 24 Hours OnlineIf you have any idea about the product, welcome to contact us any time. |
Project Capability | We have 500+ overseas project engineering experience.Any reasonable project is welcome. |
Package | Carton and flight case are available |
GW | 26KG |
