Product Description:
ALED BSW280 is a 3in1 spot moving head light, featuring a single LED White 250w that integrates Beam, GOBO, and wash in one unit. It is energy-efficient, with an extended lifespan, rapid heat dissipation, powerful functionality, and easy control.
Its gobos can be zoom and focus,the rotation gobos can be customized.
Especificação:
Input voltage: AC110V-240V / 50-60Hz
Light source:LED White 280w
Life time: 50000 hours
Rated power: 300 W
Channel mode: 17CH
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 16bit accurately and automatically
Dimmer: 0-100%, electronic linear dimming
Frost : 1 independent frost lens, soft and natural light spot
Zoom range: 9-30 degrees
Strobe: 1-25Hz, strobe speed adjustable
Color: 9 colors + white light
Fixed gobo wheel: 9 gobos + white light
Rotation gobo wheel: 7 glass gobos + white light, each glass gobos can independently rotate forward and backward
Prism: 3 prism, independent rotation forward and backward
Working mode: DMX512 control, Auto mode, master/slave mode
RDM Display: LCD
Control signal: international standard DMX512.With the RDM function, you can upgrade software online and dial address codes
Cooling: Active fan
Material: Aluminum, copper, steel, plastic
Working environment :-20 degrees ~ 40 degrees
Nível de proteção: IP20

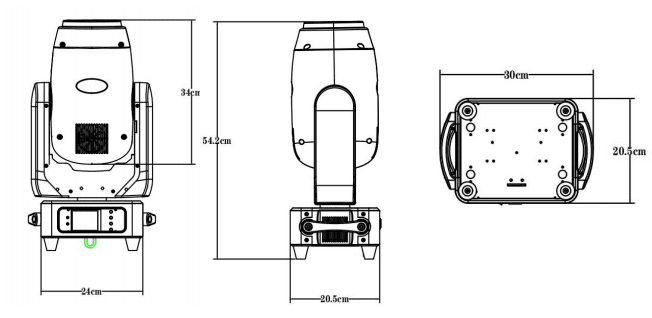

Product size: 300205542mm
Net weight: 13kg
Parâmetro:
Light Source | LED White 280w |
Input Voltage(V) | AC 100-240V, 50/60Hz |
IP Rating | IP20 |
Color Wheel | 9 colors + white light |
Fixed Gobo Wheel | 9 gobos + white light |
Rotation Gobo Wheel | 7 glass gobos + white light, each glass gobos can independently rotate forward and backward |
Prism | 3 prism, independent rotation forward and backward |
Control Mode | DMX512/Master-Slave/Auto Run/RDM/Manual |
Warranty | 2 Year |
OEM&ODM Service | 24 Hours OnlineIf you have any idea about the product, welcome to contact us any time. |
Project Capability | We have 500+ overseas project engineering experience.Any reasonable project is welcome. |
Package | Carton and flight case are available |
GW | 13KG |
Details & Function:


















Application Scenarios:
It is suitable for stage performances, concerts, nightclubs, TV studios, and large – scale event lighting, where dynamic and varied lighting effects are required.
